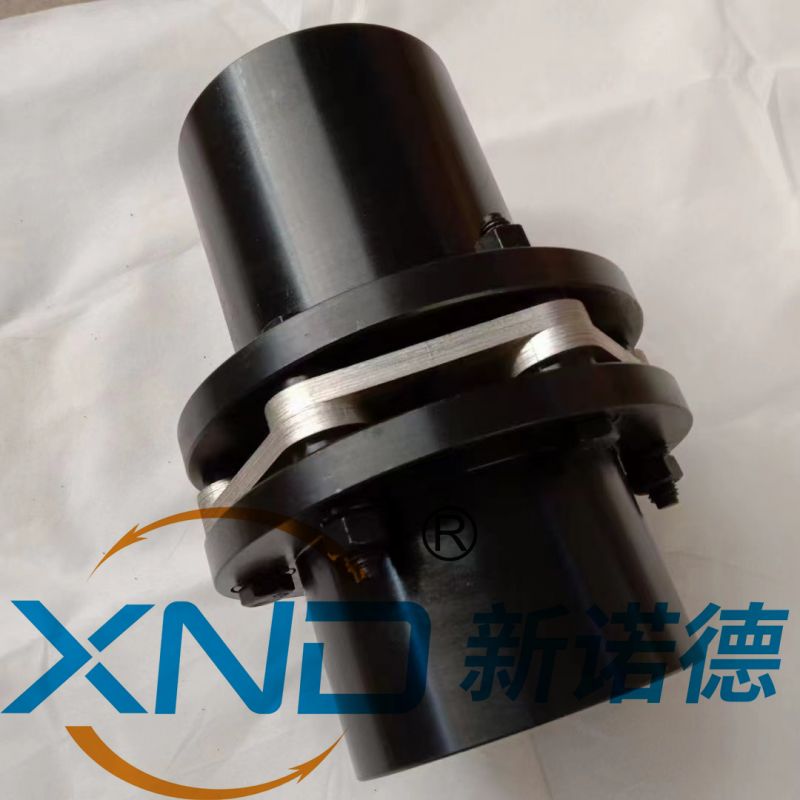

JMI 型單膜片式聯軸器

JMI 型膜片式聯軸器

型號： P601533713A917
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：金屬膜片聯軸器
商品編號：G601533713A8D4

<div style="text-align: center;"><font face="Microsoft Yahei" size="6" color="#ff0000">JMI 型 膜片式聯軸器</font></div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/78/92/6a/c3bcd26d7565aab3500e2ecc5c258dfd540ed38f.png?1612002136#w"></div><div style="text-align: left;"><p>JMI型膜片聯軸器基本參數和主要尺寸 mm<br/><br/>  </p>
<table width="100%" border="1" cellspacing="0" cellpadding="0"><tbody><tr><td width="53" rowspan="3">產品型號</td><td width="48" rowspan="3">公稱<br/>            轉矩 <br/>Tn<br/>            /N·m</td><td width="43" rowspan="3">瞬間   <br/>大轉矩 <br/>Tmax<br/>            /N·m</td><td width="49" rowspan="3">許可<br/>            轉速<br/>[n]<br/>            /r·mi-1</td><td width="85" height="18" rowspan="3">軸孔<br/>            直徑 <br/>d<br/>            (H7)</td><td height="18" colspan="4">軸孔長度</td><td width="39" rowspan="3">外圓直徑 D</td><td width="67" rowspan="3">扭轉<br/>            剛度 <br/>C<br/>            /N·m·rad-1</td><td width="43" rowspan="3">膜片厚度 t</td><td width="45" rowspan="3">轉動<br/>            慣量 <br/>I<br/>            kg·m2 <br/>            ≈</td><td width="52" rowspan="3">質量<br/>m<br/>            /kg <br/>            ≈</td></tr><tr><td width="43" height="18">Y型</td><td height="18" colspan="2">J、J1、<br/>Z 型</td><td width="26" height="18" rowspan="2">L推薦</td></tr><tr><td width="43" height="19">L</td><td width="26" height="19">L</td><td width="66" height="19">L1</td></tr><tr><td width="53" rowspan="3">JMI1</td><td width="48" rowspan="3">25</td><td width="43" rowspan="3">80</td><td width="49" rowspan="3">6000</td><td width="85">14</td><td width="43">32</td><td width="26" height="18" rowspan="3">-</td><td width="66" height="18">J1型為27 Z1型為20</td><td width="26" height="18" rowspan="3">35</td><td width="39" rowspan="3">90</td><td width="67" rowspan="3">1×104</td><td width="43" rowspan="3">8.8</td><td width="45" rowspan="3">0.0007</td><td width="52" rowspan="3">1</td></tr><tr><td width="85" height="18">16、18、19</td><td width="43" height="18">42</td><td width="66" height="18">30</td></tr><tr><td width="85" height="18">20、22</td><td width="43" height="18">52</td><td width="66" height="18">38</td></tr><tr><td width="53" rowspan="3">JMI2</td><td width="48" rowspan="3">63</td><td width="43" rowspan="3">180</td><td width="49" rowspan="3">5000</td><td width="85" height="18">18、19</td><td width="43" height="18">42</td><td width="26" height="18" rowspan="3">-</td><td width="66" height="18">30</td><td width="26" height="18" rowspan="3">45</td><td width="39" rowspan="3">100</td><td width="67" rowspan="3">1.4×104</td><td width="43" rowspan="3">9.5</td><td width="45" rowspan="3">0.001</td><td width="52" rowspan="3">1.3</td></tr><tr><td width="85" height="18">20、22、24</td><td width="43" height="18">52</td><td width="66" height="18">38</td></tr><tr><td width="85" height="18">25</td><td width="43" height="18">62</td><td width="66" height="18">44</td></tr><tr><td width="53" rowspan="3">JMI3</td><td width="48" rowspan="3">100</td><td width="43" rowspan="3">315</td><td width="49" rowspan="3">5000</td><td width="85" height="18">20、22、24</td><td width="43" height="18">52</td><td width="26" height="18" rowspan="3">-</td><td width="66" height="18">38</td><td width="26" height="18" rowspan="3">50</td><td width="39" rowspan="3">120</td><td width="67" rowspan="3">1.87×104</td><td width="43" rowspan="3">11</td><td width="45" rowspan="3">0.0024</td><td width="52" rowspan="3">2.3</td></tr><tr><td width="85" height="18">25、28</td><td width="43" height="18">62</td><td width="66" height="18">44</td></tr><tr><td width="85" height="18">30</td><td width="43" height="18">82</td><td width="66" height="18">60</td></tr><tr><td width="53" rowspan="3">JMI4</td><td width="48" rowspan="3">160</td><td width="43" rowspan="3">500</td><td width="49" rowspan="3">4500</td><td width="85" height="18">24</td><td width="43" height="18">52</td><td width="26" height="18" rowspan="3">-</td><td width="66" height="18">38</td><td width="26" height="18" rowspan="3">55</td><td width="39" rowspan="3">130</td><td width="67" rowspan="3">3.12×104</td><td width="43" rowspan="3">12.5</td><td width="45" rowspan="3">0.0037</td><td width="52" rowspan="3">3.3</td></tr><tr><td width="85" height="18">25、28</td><td width="43" height="18">62</td><td width="66" height="18">44</td></tr><tr><td width="85" height="18">30、32、35</td><td width="43" height="18">82</td><td width="66" height="18">60</td></tr><tr><td width="53" rowspan="3">JMI5</td><td width="48" rowspan="3">250</td><td width="43" rowspan="3">710</td><td width="49" rowspan="3">4000</td><td width="85" height="18">28</td><td width="43" height="18">62</td><td width="26" height="18" rowspan="3">-</td><td width="66" height="18">44</td><td width="26" height="18" rowspan="3">60</td><td width="39" rowspan="3">150</td><td width="67" rowspan="3">4.32×104</td><td width="43" rowspan="3">14</td><td width="45" rowspan="3">0.0083</td><td width="52" rowspan="3">5.3</td></tr><tr><td width="85" height="18">30、32、35、38</td><td width="43" height="18">82</td><td width="66" height="18">60</td></tr><tr><td width="85" height="18">40</td><td width="43" height="18">112</td><td width="66" height="18">84</td></tr><tr><td width="53" rowspan="2">JMI6</td><td width="48" rowspan="2">400</td><td width="43" rowspan="2">1120</td><td width="49" rowspan="2">3600</td><td width="85" height="18">32、35、38</td><td width="43" height="18">82</td><td width="26" height="18">82</td><td width="66" height="18">60</td><td width="26" height="18" rowspan="2">65</td><td width="39" rowspan="2">170</td><td width="67" rowspan="2">6.88×104</td><td width="43" rowspan="2">15.5</td><td width="45" rowspan="2">0.0159</td><td width="52" rowspan="2">8.7</td></tr><tr><td width="85" height="18">40、42、45<br/>、48、50</td><td width="43" height="18">112</td><td width="26" height="18">-</td><td width="66" height="18">84</td></tr><tr><td width="53" rowspan="3">JMI7</td><td width="48" rowspan="3">630</td><td width="43" rowspan="3">1800</td><td width="49" rowspan="3">3000</td><td width="85" height="18">40、42</td><td width="43" height="18" rowspan="2">112</td><td width="26" height="18">112</td><td width="66" height="18" rowspan="2">84</td><td width="26" height="18" rowspan="3">70</td><td width="39" rowspan="3">210</td><td width="67" rowspan="3">10.35×104</td><td width="43" rowspan="3">19</td><td width="45" rowspan="3">0.0432</td><td width="52" rowspan="3">14.3</td></tr><tr><td width="85" height="18">45、45、50<br/>、55、56</td><td width="26" height="18" rowspan="2">-</td></tr><tr><td width="85" height="18">60</td><td width="43" height="18">142</td><td width="66" height="18">107</td></tr><tr><td width="53" rowspan="3">JMI8</td><td width="48" rowspan="3">1000</td><td width="43" rowspan="3">2500</td><td width="49" rowspan="3">2800</td><td width="85" height="18">45、48</td><td width="43" height="18" rowspan="2">112</td><td width="26" height="18">112</td><td width="66" height="18" rowspan="2">84</td><td width="26" height="18" rowspan="3">80</td><td width="39" rowspan="3">240</td><td width="67" rowspan="3">16.11×104</td><td width="43" rowspan="3">22.5</td><td width="45" rowspan="3">0.0879</td><td width="52" rowspan="3">22</td></tr><tr><td width="85" height="18">50、55、56</td><td width="26" height="18" rowspan="2">-</td></tr><tr><td width="85" height="18">60、63、65、70</td><td width="43" height="18">142</td><td width="66" height="18">107</td></tr><tr><td width="53" rowspan="3">JMI9</td><td width="48" rowspan="3">1600</td><td width="43" rowspan="3">4000</td><td width="49" rowspan="3">2500</td><td width="85" height="18">55、56</td><td width="43" height="18">112</td><td width="26" height="18">112</td><td width="66" height="18">84</td><td width="26" height="18" rowspan="3">85</td><td width="39" rowspan="3">260</td><td width="67" rowspan="3">26.17×104</td><td width="43" rowspan="3">24</td><td width="45" rowspan="3">0.1415</td><td width="52" rowspan="3">29</td></tr><tr><td width="85" height="18">60、63、65<br/>、70、71、75</td><td width="43" height="18">142</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">107</td></tr><tr><td width="85" height="18">80</td><td width="43" height="18">172</td><td width="66" height="18">132</td></tr><tr><td width="53" rowspan="2">JMI10</td><td width="48" rowspan="2">2500</td><td width="43" rowspan="2">6300</td><td width="49" rowspan="2">2000</td><td width="85" height="18">63、65、70<br/>、71、75</td><td width="43" height="18">142</td><td width="26" height="18">142</td><td width="66" height="18">107</td><td width="26" height="18" rowspan="2">90</td><td width="39" rowspan="2">280</td><td width="67" rowspan="2">7.88×104</td><td width="43" rowspan="2">17</td><td width="45" rowspan="2">0.2974</td><td width="52" rowspan="2">52</td></tr><tr><td width="85" height="18">80、85、90、95</td><td width="43" height="18">172</td><td width="26" height="18">-</td><td width="66" height="18">132</td></tr><tr><td width="53" rowspan="3">JMI11</td><td width="48" rowspan="3">4000</td><td width="43" rowspan="3">9000</td><td width="49" rowspan="3">1800</td><td width="85" height="18">75</td><td width="43" height="18">142</td><td width="26" height="18">142</td><td width="66" height="18">107</td><td width="26" height="18" rowspan="3">95</td><td width="39" rowspan="3">300</td><td width="67" rowspan="3">10.49×104</td><td width="43" rowspan="3">19.5</td><td width="45" rowspan="3">0.4782</td><td width="52" rowspan="3">69</td></tr><tr><td width="85" height="18">80、85、90、95</td><td width="43" height="18">172</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">132</td></tr><tr><td width="85" height="18">100、110</td><td width="43" height="18">212</td><td width="66" height="18">167</td></tr><tr><td width="53" rowspan="2">JMI12</td><td width="48" rowspan="2">6300</td><td width="43" rowspan="2">12500</td><td width="49" rowspan="2">1600</td><td width="85" height="18">90、95</td><td width="43" height="18">172</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">132</td><td width="26" height="18" rowspan="2">120</td><td width="39" rowspan="2">340</td><td width="67" rowspan="2">14.07×104</td><td width="43" rowspan="2">23</td><td width="45" rowspan="2">0.8067</td><td width="52" rowspan="2">94</td></tr><tr><td width="85" height="18">100、110<br/>、120 、125</td><td width="43" height="18">212</td><td width="66" height="18">167</td></tr><tr><td width="53" rowspan="2">JMI13</td><td width="48" rowspan="2">10000</td><td width="43" rowspan="2">18000</td><td width="49" rowspan="2">1400</td><td width="85" height="18">100、110<br/>、120、125</td><td width="43" height="18">212</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">167</td><td width="26" height="18" rowspan="2">135</td><td width="39" rowspan="2">380</td><td width="67" rowspan="2">19.23×104</td><td width="43" rowspan="2">28</td><td width="45" rowspan="2">1.7053</td><td width="52" rowspan="2">128</td></tr><tr><td width="85" height="18">130、140</td><td width="43" height="18">252</td><td width="66" height="18">202</td></tr><tr><td width="53" rowspan="3">JMI14</td><td width="48" rowspan="3">16000</td><td width="43" rowspan="3">28000</td><td width="49" rowspan="3">1200</td><td width="85" height="18">120、125</td><td width="43" height="18">212</td><td width="26" height="18" rowspan="3">-</td><td width="66" height="18">167</td><td width="26" height="18" rowspan="3">150</td><td width="39" rowspan="3">420</td><td width="67" rowspan="3">30.01×104</td><td width="43" rowspan="3">31</td><td width="45" rowspan="3">2.6832</td><td width="52" rowspan="3">184</td></tr><tr><td width="85" height="18">130、140、150</td><td width="43" height="18">252</td><td width="66" height="18">202</td></tr><tr><td width="85" height="18">160</td><td width="43" height="18">302</td><td width="66" height="18">242</td></tr><tr><td width="53" rowspan="2">JMI15</td><td width="48" rowspan="2">25000</td><td width="43" rowspan="2">40000</td><td width="49" rowspan="2">1120</td><td width="85" height="18">140、150</td><td width="43" height="18">252</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">202</td><td width="26" height="18" rowspan="2">180</td><td width="39" rowspan="2">480</td><td width="67" rowspan="2">47.46×104</td><td width="43" rowspan="2">37.5</td><td width="45" rowspan="2">4.8015</td><td width="52" rowspan="2">263</td></tr><tr><td width="85" height="18">160、170、180</td><td width="43" height="18">302</td><td width="66" height="18">242</td></tr><tr><td width="53" rowspan="2">JMI16</td><td width="48" rowspan="2">40000</td><td width="43" rowspan="2">56000</td><td width="49" rowspan="2">1000</td><td width="85" height="18">160、170、180</td><td width="43" height="18">302</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">242</td><td width="26" height="18" rowspan="2">200</td><td width="39" rowspan="2">560</td><td width="67" rowspan="2">68.09×104</td><td width="43" rowspan="2">41</td><td width="45" rowspan="2">9.4118</td><td width="52" rowspan="2">384</td></tr><tr><td width="85" height="18">190、200</td><td width="43" height="18">352</td><td width="66" height="18">282</td></tr><tr><td width="53" rowspan="2">JMI17</td><td width="48" rowspan="2">63000</td><td width="43" rowspan="2">80000</td><td width="49" rowspan="2">900</td><td width="85" height="18">190、200、220</td><td width="43" height="18">352</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">282</td><td width="26" height="18" rowspan="2">220</td><td width="39" rowspan="2">630</td><td width="67" rowspan="2">101.3×104</td><td width="43" rowspan="2">47</td><td width="45" rowspan="2">18.3753</td><td width="52" rowspan="2">561</td></tr><tr><td width="85" height="18">240</td><td width="43" height="18">410</td><td width="66" height="18">330</td></tr><tr><td width="53" rowspan="2">JMI18</td><td width="48" rowspan="2">100000</td><td width="43" rowspan="2">125000</td><td width="49" rowspan="2">800</td><td width="85" height="18">220</td><td width="43" height="18">352</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">282</td><td width="26" height="18" rowspan="2">250</td><td width="39" rowspan="2">710</td><td width="67" rowspan="2">161.4×104</td><td width="43" rowspan="2">54.5</td><td width="45" rowspan="2">28.2033</td><td width="52" rowspan="2">723</td></tr><tr><td width="85" height="18">240、250、260</td><td width="43" height="18">410</td><td width="66" height="18">330</td></tr><tr><td width="53" rowspan="2">JMI19</td><td width="48" rowspan="2">160000</td><td width="43" rowspan="2">200000</td><td width="49" rowspan="2">700</td><td width="85" height="18">250、260</td><td width="43" height="18">410</td><td width="26" height="18" rowspan="2">-</td><td width="66" height="18">330</td><td width="26" height="18" rowspan="2">280</td><td width="39" rowspan="2">800</td><td width="67" rowspan="2">79.3×104</td><td width="43" rowspan="2">48</td><td width="45" rowspan="2">66.5813</td><td width="52" rowspan="2">1267</td></tr></tbody></table></div>
