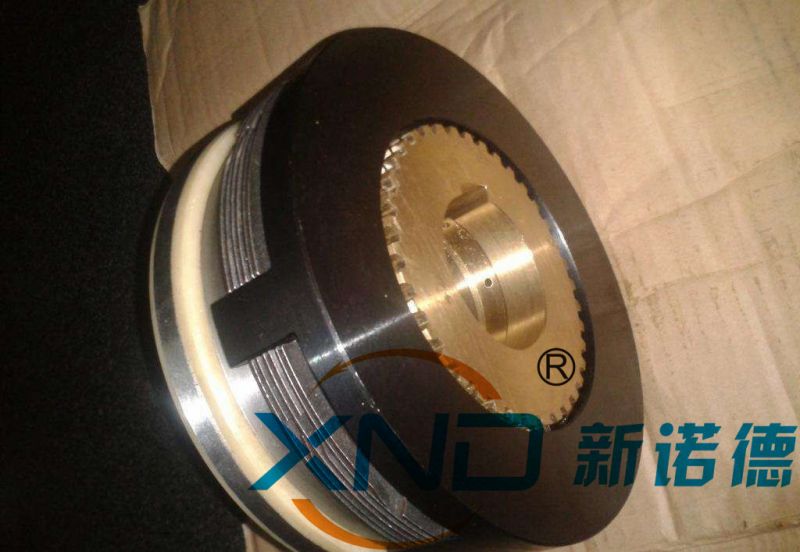

DLM10系列濕式/干式多片帶滑環電磁離合器

型號： P5F7D8F65DFEFC
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：多片電磁離合器
商品編號：G5F7D8F65DFEAE

<div style="text-align: center;"><font face="Microsoft Yahei" size="6" color="#ff0000">DLM10系列 濕式/干式多片帶滑環電磁離合器</font></div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/8d/5c/ac/b72e064f22372b993aa9b20639a2322771d5f606.jpg?1602064169#w"></div><p><br/></p><div><div><font class="zzi">商品說明</font>
<div   id="8s444esco6"   class="clear5" style="BORDER-BOTTOM: #cfcfcf 1px dotted"></div>
<div   id="8s444esco6"   class="clear10"></div>
<p><strong>一、主要用途：</strong>DLM10系列分為濕式多片電磁離合器和干式多片電磁離合器兩種，為有滑環式，濕式需在有潤滑的條件下工作，干式需在無潤滑的條件下工作，該系列離合器摩擦片損失小，使用壽命長。徑向尺寸小、力矩大、可廣泛用于機床、軋鋼、冶金采礦、金屬壓延、搬運、船舶漁業等設備的機械傳動系統中，起到離合、換向、變速等作用。<br/><br/><strong>二、工作條件：</strong>海拔高度不超過2000米；周圍空氣溫度為-5°C～+40°C；周圍介質中無爆炸危險且無足以腐蝕金屬和破壞絕緣的氣體及導電塵埃；離合器線圈的供電電壓波動不超過+5%和-15%的額定電壓；濕式離合器摩擦片間需要有潤滑油。<br/><br/><strong>三、安裝：</strong>離合器安裝前應清洗干凈；安裝是應軸向固定，如分軸安裝應保持同軸度為9級；濕式離合器工作時應向摩擦片供油，在高速運轉和高頻工作時，應采取軸心供油法；離合器潤滑油應清潔，否則會影響其使用可靠性。 <br/> </p>
<div   id="8s444esco6"   class="clear20"></div><font class="zzi">DLM10主要性能參數Main Technical Data</font>
<div   id="8s444esco6"   class="clear5" style="BORDER-BOTTOM: #cfcfcf 1px dotted"></div>
<div   id="8s444esco6"   class="clear10"></div>
<table class="canshubiao" cellspacing="0" cellpadding="0" align="center" border="1">
<tbody>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">產品系列 series</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">規格 size</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">額定動力矩 N.m</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">額定靜力矩 N.m</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">空載力矩 (≤) N.m</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">接通時間 (≤) S</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">斷開時間 ( ≤ )S</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">額定電壓 DCV</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">線圈消耗功率(20℃) W</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">允許最高轉速 r/min</td>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc">重量 kg</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#ffffcc" rowspan="13">DLM10</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1A/1A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">12.5</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">20/14</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.088/0.05</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.14/0.11</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.03/0.025</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">26</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">3000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">2</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">2A/2A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">25</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">40/27.5</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.175/0.10</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.18/0.16</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.032/0.028</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">27</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">3000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">2.6</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">4A/4A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">40</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">63/44</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.280/0.16</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.20/0.18</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.04/0.03</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">33</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">3000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">3.2</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">6A/6A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">63</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">100/70</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.350/0.26</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.25/0.20</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.045/0.04</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">43</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">3000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">4</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">10A/10A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">100</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">160/110</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.500/0.35</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.28/0.25</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.06/0.045</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">43</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">3000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">5.5</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">16A/16A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">160</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">250/175</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">1.00/0.56</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.30/0.28</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.08/0.06</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">47</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">2500</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">7.8</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">25A/25A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">250</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">400/280</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">1.50/0.88</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.35/0.30</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.11/0.08</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">55</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">2200</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">11</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">40A/40A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">400</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">630/440</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">2.50/1.40</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.40/0.35</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.12/0.11</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">62</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">2000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">15</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">63A/63A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">630</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1000/700</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">4.00/2.20</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.50/0.40</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.15/0.12</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">70</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1750</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">21</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">100A/100A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">1000</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1600/1100</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">6.00/3.00</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.60/0.50</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.18/0.15</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">79</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1600</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">32</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">160A/160A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">1600</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">2500/1750</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">10/5.5</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">0.90/0.70</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.22/0.18</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">93</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1350</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">50</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">250A/250A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">2500</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">4000/2750</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">15/8.6 </td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1.15/0.90 </td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc"> 0.28/0.25</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff"> 24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">110 </td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1200 </td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc"> 77</td></tr>
<tr>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">400A/400A.G</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">4000</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">6300/4400</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">24/14</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1.30/1.20</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">0.35/0.30</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">24</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">123</td>
<td style="TEXT-ALIGN: center" bgcolor="#aad5ff">1000</td>
<td style="TEXT-ALIGN: center" bgcolor="#ccffcc">122</td></tr></tbody></table></div>
<div   id="8s444esco6"   class="clear20"></div><font class="zzi">安裝示意圖及總裝圖/Diagrammatic Sketch of
Installation：</font></div><p><font class="zzi"><br/></font></p><p><font class="zzi"><br/></font></p><div><font class="zzi"><font class="zzi">外形與安裝尺寸：</font>
<div   id="8s444esco6"   class="clear5" style="BORDER-BOTTOM: #cfcfcf 1px dotted"></div>
<div   id="8s444esco6"   class="clear10"></div>
<div align="center">
<div align="center">
<div align="center">
<div align="center">
<div style="TEXT-ALIGN: left">
<div>
<div align="center">
<div align="center">
<table style="WIDTH: 584pt; BORDER-COLLAPSE: collapse" cellspacing="0" cellpadding="0" width="773" border="0" x:str="">
<colgroup>
<col style="WIDTH: 58pt; mso-width-source: userset; mso-width-alt: 2464" width="77">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" span="3" width="37">
<col style="WIDTH: 34pt; mso-width-source: userset; mso-width-alt: 1440" width="45">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" span="3" width="37">
<col style="WIDTH: 40pt; mso-width-source: userset; mso-width-alt: 1696" span="2" width="53">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" span="5" width="37">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" width="37">
<col style="WIDTH: 76pt; mso-width-source: userset; mso-width-alt: 3232" width="101"></colgroup>
<tbody>
<tr style="HEIGHT: 15pt" height="20">
<td class="xl28" style="BORDER-TOP: black 0.5pt solid; HEIGHT: 30pt; BORDER-RIGHT: silver 1pt solid; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="40" rowspan="2" width="77"><font face="宋體">規格</font><font class="font5">
size</font></td>
<td class="xl30" style="BORDER-TOP: black 0.5pt solid; BORDER-RIGHT: silver 1pt solid; WIDTH: 282pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="373" colspan="9"><font face="宋體">徑向尺寸</font><font class="font5">Radial
Demensions</font></td>
<td class="xl30" style="BORDER-TOP: black 0.5pt solid; BORDER-RIGHT: silver 1pt solid; WIDTH: 168pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="222" colspan="6"><font face="宋體">軸向尺寸</font><font class="font5">Axial
Demensions</font></td>
<td class="xl33" style="BORDER-TOP: black 0.5pt solid; BORDER-RIGHT: black 0.5pt solid; WIDTH: 76pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: silver 1pt solid; BACKGROUND-COLOR: #ffffcc" rowspan="2" width="101"><font face="宋體">電刷型號</font><font class="font5">
Brush</font></td></tr>
<tr style="HEIGHT: 15pt" height="20">
<td class="xl24" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" height="20" width="37">D1</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">D2</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">D3</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="45">D4</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">Φ</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">e</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">h</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="53">J</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="53">K</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">L</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">L1</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">L2</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">L3</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">L4</td>
<td class="xl24" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ffffcc" width="37">ε</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">1A/1A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">100</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">100</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">85</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">50</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">18</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">5</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">19.9</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">2×Φ6</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">4×M6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">45</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">42</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">5</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.3</td>
<td class="xl35" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: silver; WIDTH: 76pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT: silver 1pt solid; BACKGROUND-COLOR: #ccffcc" rowspan="13" width="101"><font face="宋體">濕式采用</font><font class="font5"> DS-005
</font><font class="font6" face="宋體">干式采用</font><font class="font5">
DS-006</font></td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">2A/2A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">110</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">110</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">90</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">55</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">20</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">6</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">22.3</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">2×Φ6</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">4×M6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">48</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">45</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">5</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.3</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">4A/4A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">120</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">120</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">100</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">60</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">25</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">27.6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ6</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">52</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">48</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">6</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.3</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">6A/6A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">132</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">132</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">105</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">65</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">30</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">32.6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ6</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M8</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">55</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">50</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">7</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.3</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">10A/10A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">147</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">145</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">120</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">75</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">40</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">12</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">42.9</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M8</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">58</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">53</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">7</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.35</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">16A/16A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">162</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">160</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">135</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">85</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">45</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">14</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">48.3</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M8</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">62</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">57</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">7</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.4</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">25A/25A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">182</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">180</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">155</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">95</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">50</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">16</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">53.6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ10</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M10</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">68</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">63</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">6</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.45</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">40A/40A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">202</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">200</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">170</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">120</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">60</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">18</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">64</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ10</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M10</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">76</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">70</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">9</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">6.25</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.5</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">63A/63A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">235</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">230</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">200</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">125</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">70</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">20</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">74.3</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ14</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M12</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">86</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">80</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">6.25</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.6</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">100A/100A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">270</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">255</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">235</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">150</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">70</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">20</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">74.3</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ14</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M12</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">100</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">92</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">12</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">8.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.7</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">160A/160A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">310</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">295</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">260</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45">180H8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">75</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">20</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">81.1</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">3×Φ16</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M16</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">115</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">107</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">14</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">8</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.8</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl27" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">250A/250A.G</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">360</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">340</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">305</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45">200H8</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">100</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">28</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="106.4">106</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">4×Φ16</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M16</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">132</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">122</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">15</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">8.5</td>
<td class="xl26" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td>
<td class="xl25" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: silver 1pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">0.9</td></tr>
<tr style="HEIGHT: 15pt; mso-height-source: userset" height="20">
<td class="xl38" style="HEIGHT: 15pt; BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="20" width="77">400A/400A.G</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">420</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">395</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">350</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="45">235H8</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">120</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">32</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="126.7">127</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="53">4×Φ20</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="53">6×M16</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">150</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">138</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">17</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">8.5</td>
<td class="xl40" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td>
<td class="xl39" style="BORDER-RIGHT: silver 1pt solid; BORDER-TOP-COLOR: silver; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: silver; BACKGROUND-COLOR: #99ccff" width="37" x:num="">1</td></tr></tbody></table></div></div></div></div></div></div></div></div></font></div><p><br/></p>

久久久无码精品亚洲日韩一级|国产一区二区AAAAtv|亚洲欧美久久精品一区二|中文一区二区视频在线,国产欧美乱夫不卡无乱码,真人无码免费作爱视频禁 ,国产亚洲日韩欧美在线播放

相關分類

同類其它品牌

小東推薦

DLM10系列濕式/干式多片帶滑環電磁離合器

商品詳情

商品評論

商品咨詢

您看過的商品

正品保障品類齊全

多倉直發 貨期保證

專業客服答疑解惑

陽光采購一站服務

關于新諾德

相關分類

同類其它品牌

小東推薦

DLM10系列 濕式/干式多片帶滑環電磁離合器

您看過的商品

DLM10系列濕式/干式多片帶滑環電磁離合器
